Piccolo XR
Radio Remote terminal unit controls multiple inputs and output capable to communicates as a repeater to the other remote units, thus increasing range.

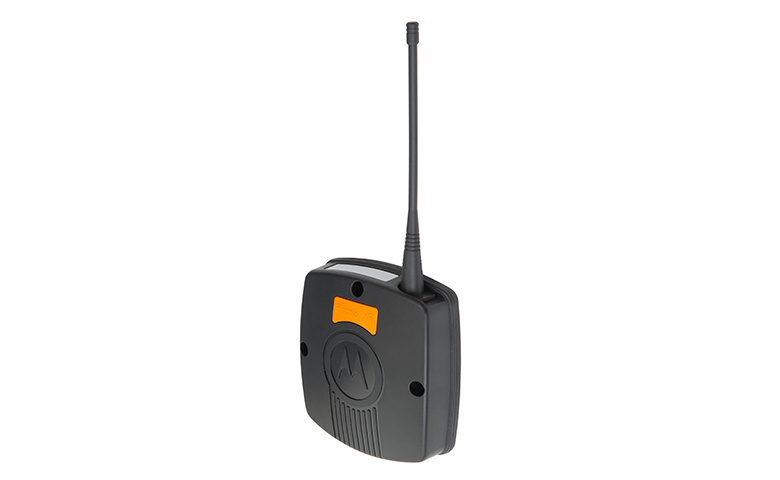

The Piccolo XR is a small sized wireless Remote Terminal Unit that operates as an integral part of the IRRInet system. The Piccolo XR operates up to 4 latched outputs and may receive up to 7 digital inputs (model dependent).
The PIU (Piccolo Interface Unit) is connected to the IRRInet Field Unit and communicates with Piccolo-XR units via its internal two-way low-power radio.
The Piccolo XR and PIU are equipped with internal 10/100mWatt radios (configurable).

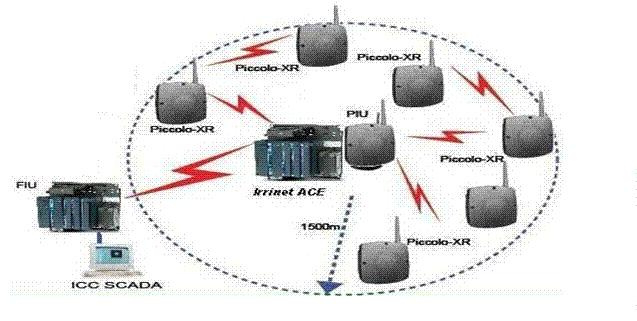

In order to extend radio coverage the Piccolo XR is capable of operating in a networking mode using numerous hops.
The Piccolo XR available in 4 I/O’s models:
- 1 Output 1 Input
2 Output’s 2 Input’s- 4 Output’s 4 Input’s
- 1 Output’s 7 Input’s
The Piccolo XR is designed to work in nearly all environments. With its Self-Contained, Secured enclosure system, the XR can be installed in minutes ready to work with your IRRInet system.
Self-Sufficient

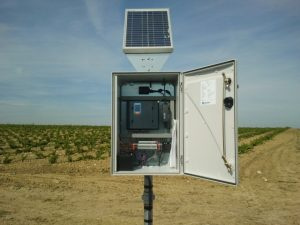

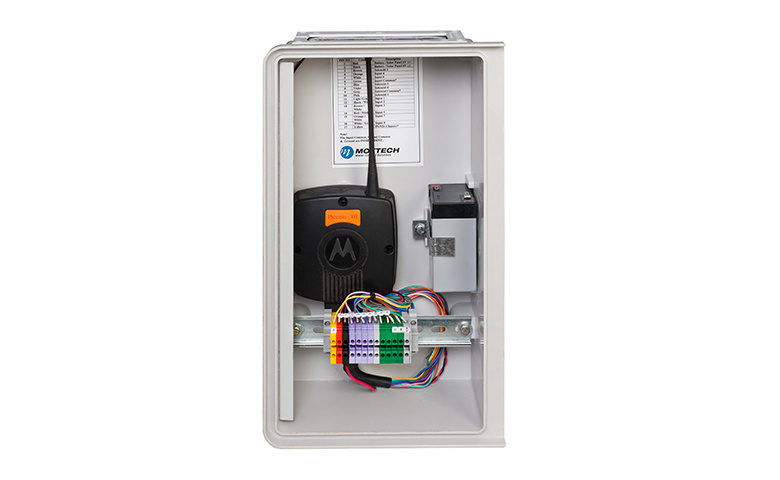

The Cabinet Assembly System (CAS) is a Mottech enclosure with a built-in solar panel and a strong integrated locking system to prevent vandalism and un-authorized access.
The Piccolo XR is a high efficiency unit designed with very low power requirements. The unit ships complete with a 6V/90mA solar panel, designed to extend the life of the battery, provide a stable energy source and insure reliable communications.
Capability
The XR is utilized in hundreds of various applications across thousands of units.
- Irrigation Control – Controlling Irrigation functions such as Valves, Water meters, Starting/Stopping Pumps and Fertigation
- Master valve control – Within HOA’s, and Cities, the XR is wireless controlling Master Valves to minimize risk associated with broken Mainlines and Valves that fail in the open position.
- Monitoring Options – Tracking flow, Pressure, Water Levels, Soil Moisture, pH and Salinity.
Advanced and autonomic communication capabilities
The Piccolo XR communication using an integrated, low power radio providing range capabilities of 2-3 km depending on the terrain. Powerful Store and Forward capabilities allow for extended coverage using multiple XR units deployed in a an advance network methodology.
Technical Specifications:
Frequency range (PIU and Piccolo XR)
PIU – I/O capacity
- Up to 248 inputs and 248 outputs
- Internal UHF two-way radio
- RS232 communication to IRRInet field unit
- RS485 communication to IRRInet field unit
Piccolo XR and PIU Power Supply
- External 6VDC for Piccolo XR
- 6 to 12VDC for PIU
Available I/O modeles
- 1 DI / 1 2 DO
- 2 DI / 2 DO
- 4 DI / 4 DO
- 7 DI / 1 DO
Environmental Conditions
Operating temperature: -30° C to + 60° C
(-22° F to + 140° F)
Mottech Fertigation Machine
Overview

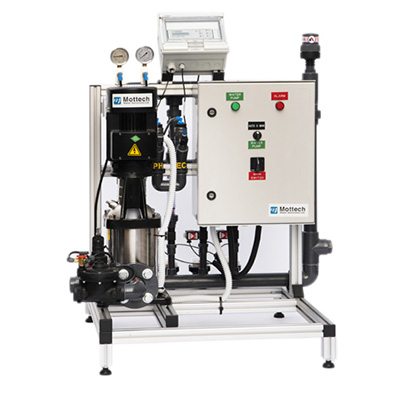

Our Mottech Fertigation Machine injects fertilizers and acid into the irrigation water.
The Fertigation Machine bypass line runs parallel to the main irrigation line and injects the nutrients and acid using venture pumps, with fertilizer meters monitored by EC and pH sensors.
ICC PRO and the IRRInet platform manage our fertigation machine and divide the fertilizers all along the irrigation process, according to operator demands. The Mottech Fertigation Machine has been designed to perform irrigation and fertigation of open field, orchards, vineyards, greenhouses, and other applications.
Data Sheet
Highlights
- Suitable for large multivalve agriculture systems (open fields, orchards, greenhouses)
- Manage remote terminal units (RTUs) such as Piccolo XR
- Online alarms
- Remote and local operation
- Up to 500 irrigation and fertilizer programs
- Multi-irrigation lines, one machine for many lines
- EC and pH monitoring
- Fertilizer counter and monitoring for each injector
Technical Specifications
More Features
- Channel Flow (each)• 160 l/h
• 350 l/h
• 500 l/h
• 1000 l/h - EC/pH calibration controller
- Materials• Corrosion-resistant frame
• Stainless steel booster pump
• Adjustable legs
- Mainline Water Pressure Range:3 to 6 bars
- Dosing Channels:
- Up to 5
Sensor IoT
Overview
Mottech increases its portfolio of solutions and adds Sensor IoT units which allows connect sensors and meters to the ICC PRO platform using LoRaWAN protocol.
The IoT controllers solution includes gateways and Sensor IoT units that connect to the ICC PRO platform, allowing system users to receive more data from distant locations efficiently and economically.
System components
GatewaysMottech IoT Gateway
The IoT Gateway is housed in an Independent IP67 waterproof case that transmits end unit data to the ICC PRO. The IoT Gateway, installed on a wall or a pole, communicates with the ICC PRO via cellular, Ethernet and Wi-Fi and manages hundreds of end units. Unit programming is simple and user-friendly.
IRRInet Edge
The IRRInet Edge Gateway enables the transfer of data through an internal LoRaWAN adapter. Using IRRInet Edge as a gateway enables local I/O and remote Piccolo XR control
Sensor IoT units

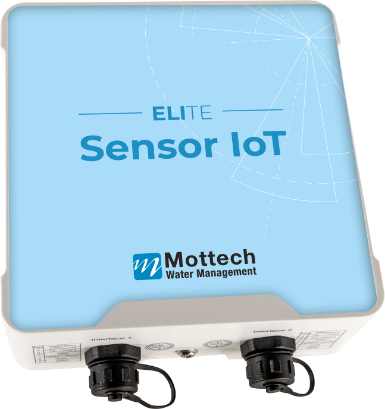

The Sensor IoT units are installed in a small, light, IP67 waterproof case which is resistant to harsh conditions and designed for outdoor installation. The units are powered by a high-capacity internal battery that lasts up to 5 years, depending on data transfer usage.
Some models can accommodate an integrated solar panel to charge the battery. From the Gateway, data is transferred to ICC PRO. Sensor IoT units are easily and simply configured using mobile phones via NFC or Wired USB ports.
